Fully Automatic 3 Ply Corrugated Cardboard Production Line 1600mm Type

Name: Fully Automatic 3 Ply Corrugated Cardboard Production Line 1600mm Type
Brand: Kingsun
Price: 1 USD

Best Fully Automatic 3 Ply Corrugated Cardboard Production Line 1600mm Type wholesale

Brand Name : Kingsun

Model Number : WJ

Certification : CE

Place of Origin : China Hebei

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1 set 40-60 per days

Delivery Time : 7-9 work days

Packaging Details : Wrapped in plastic film and placed in wooden box

Name : Fully Automatic 3 Ply Corrugated Cardboard Production Line 1600mm Type

Size : 1600mm

Color : White

Advantage : Fast speed

Degree of automatic : Automatic

Keyword : Corrugated board production line

Contact Now

Fully Automatic 3 Ply Corrugated Cardboard Production Line 1600mm Type

Main technical parameters and requirements in production line

Type:WJ1600-I type three layer corrugated paperboard production line:
The maximum production width of the corrugated cardboard:1600mm
Design speed:100m/min
Economic speed:60-80m/min
note:Production line speed test paper should meet the following requirements:(the surface temperature of the equipment is not less than 172℃)
﹡Paper rating of not less than B grade ﹡Paper moisture content of about:11%±2%
﹡top paper:100—250g/m2 ﹡core paper:100--250g/m2
﹡corrugated paper:100—200g/m2
1,Flute-type combination:A ,C, B, E(as customers’ requirement)
2,Steam the necessary requirements:
﹡amount of steam 2500—3000Kg/Hr ﹡the highest pressure:1.2Mpa
﹡common pressure:0.8-1.1Mpa
6,power supply:380V 50Hz Three-phase four-wire system
7,equipment installed total power:about120KW
The actual power consumption:about 60KW(full speed)
8,equipment covers:about46m×10m×5m(Specific length of foundation Figure prevail)
9,Equipment out of paper orientation:According to the user to determine the transmission plant set left or right position
10,Equipment applicability,Available in A, B, C class domestic or imported paper Paper

Parameter

specification	Equipment name	UNIT	QTY	Unit price(Ten thousand yuan)	Remark
ZJ-F	Electric shaftless mill roll stand	a	3	3.6	expand chuck,manual dics brakes,Mechanically - actuated lift,panning left and right on the middle
	Paper trolley	a	6	3.6	track length6000mm,trolley used 10mm medium plate welding.
RG-1-600	Top paper preheater	a	1	2.2	roller￠600mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
RG-1-600	Core paper preheater	a	1	2.2	roller￠600mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
SF-280S	Corrugated single facer	a	1	13.6	Corrugated main roller￠280mm,material with 48CrMo alloy steel,independent gearbox,universal joint transmission structure.
RG-2-600	Double preheater	a	1	4.4	roller￠600mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
GM-12	Double glue machine	a	1	5	Glue roller diameter 215mm.Each independent frequency motor drive, manual adjustment glue gap.
DF	Conveyor bridge	set	1	8	200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension.
SM-10	Double facer	set	1	35	Dryer section 9 heating plate, pneumatic lifting roller, using intensive pressure roller.
ZQS	Thin knife slitting	set	1	6	Electric thin blade,electric detuning,five knives eight lines, blade with tungsten alloy steel making.
NC-120	NC cutter helical knives	a	1	17	Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.
DMT-120	Paper sheet delivery and side conveyor	a	1	5	Electric adjustment cardboard size, pneumatic control transverse output paperboard.
ZJZ	Glue station system	set	1	4	Customer-owned pipeline.glue device respectively carrier pot,main pot,storage pot,and send glue pump,back glue pump.
QU	Gas source system	a	1		Including 0.6m³gas tank 1 unit.Air pump,pipeline is prepared by the customers.
ZQ	Steam system	set	1	2	Including within equipment pipelines valve,traps,meter and steam elements,customer-supplied heat and piping.
DQ	Electrical control cabinet system	set	1		Electrical control system: the whole line speed regulation institutions adopts frequency conversion motor.Electric cabinet surface electrostatic spraying paint, wear resistance and beautiful.Main contactor main relay adopt famous brand product.

Fully Automatic 3 Ply Corrugated Cardboard Production Line 1600mm Type

Product Tags:

5 ply cardboard

corrugated cardboard production line

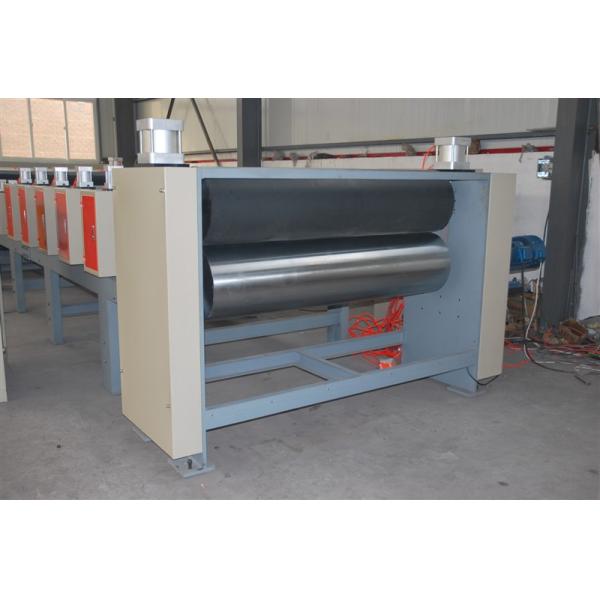

Fully Automatic 3 Ply Corrugated Cardboard Production Line 1600mm Type Images
